Automatic Pin Lathe

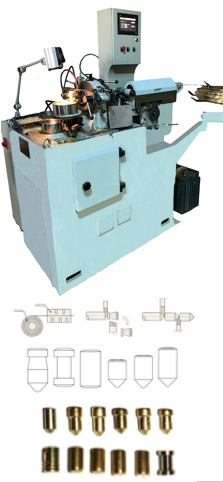

Automatic lathe for pin SK1038 is specially designed for lock industry, for producing normal pins and abnormal shape pins. It is cam driven with spindle CNC controlled, accuracy stable, total automatic, operation simple and maintain easy.

Features
1/. Cam and servo driven, Spindle CNC control, touch screen display, easy program.
2/. Coil feeding can greatly save scarp and time.
3/. Automatic straightening, automatic feeding.
4/. High speed cutting. High production efficiency.
5/. High accuracy: +/-0.012.
6/. Compact, robust mechanical design.

Specification



Model

SK1038

Processable material

Brass

Max. stock diameter

4mm

Processable pin length

10mm

Processable efficiency

50-100 pc/min

Cutting tools

2 pc

Toolhead speed

4000-6000rpm

Motor

1.97KW

Dimension

1700*1100*1750mm

Weight

670kg
