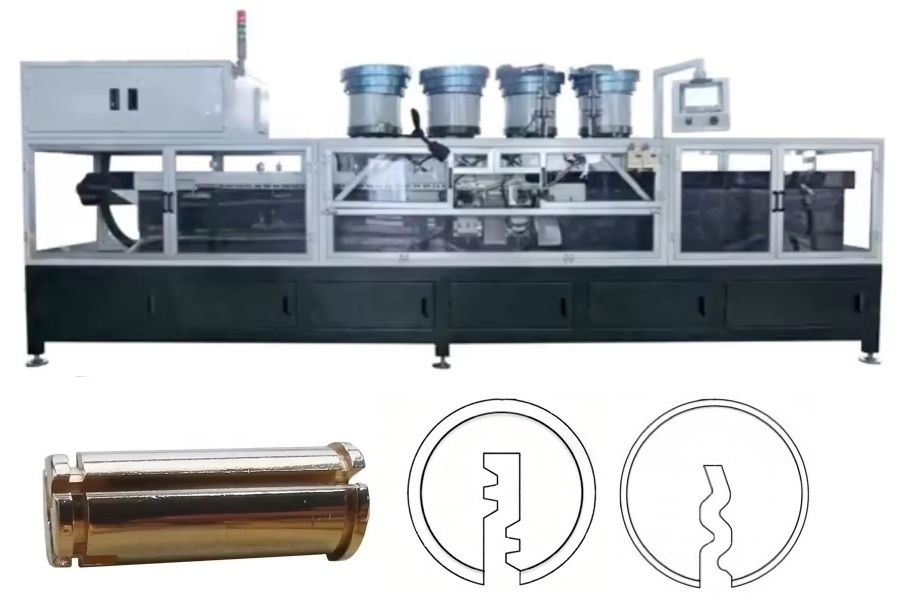

| Cylinder Keyway Broaching Machine |
Cylinder Keyway Broaching Machine is a servo-motor and ball screw rod
driven broaching machine, specially designed for processing the keyway on
lock cylinder core or padlock rotors, for I-shaped-keys, S-shaped-keys and computer keys.
It has 4 vibrating feeders, 4 discharging chutes, double-side fixtures, each fixture can
process 2 cores, eachside can process different keyway by different type of segments.
Segments move, fixtures don’t move,cores are held by fixtures. One cycle trip can processing 4 cores. |
Features:
- High accuracy, +/-0.02mm
- High efficiency, 1850
-2100 pcs/H
- Broaching Segments length: 12x100mm, or 6x200mm.
- Power consumption: 6.0KW
- PLC control.
- Touch screen setting and display, easy program.
- Easy operating. Automatic loading (with vibrating feeder), automatic pneumatic feeding, automatic pneumatic clamping, automatic broaching, automatic discharging.
- Core position check automatically.
- Pressure insufficient, core stuck alarm automatically.
- Speed adjustable by VFD.
- Convenient adjustment for different sizes of cores
- Fast tool change-over system
- Dry processing, no needcooling system.
- With chips collector
- Low noisy.
|
|
 |
Specification |
SKBC4 |
| Processable material |
Brass |
| processable diameter |
7-15mm |
| processable length |
25-60mm |
| Accuracy |
+/-0.02mm |
| Efficiey |
1850-2100 Pcs/h |
| Power Consumption |
6.0Kw |
| Dimesion |
4.4x0.9x1.6m |
| Weight |
1800kg |
| Required compressed air |
0.4-0.6MPa |
|
|
|
