Overhead Rail Hook Shot Blast Machines |

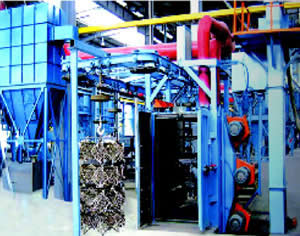

Overhead rail spin hanger(s) shot blasting machine are specially suitable for the treatment of sensitive parts, particularly complex, heavy, or large metal castings or forging parts without part-on-part contact possible. The parts are mounted on a hook and transported into the blasting chamber.
Multiply highly efficient blast wheels fixed on the machine housing make it possible to treat the components on all sides.
The rotating of the hanger(s) ensure that the
blasting media, accelerated by the blast
wheels, reache every component, providing the best
possible uniform blasting result.
|
|
 |
Mono rail continuous shot blast machines |
Model |
RHB382 |
RHB383 |
RHB384 |
Production efficiency, hook/h |
35~55 |
38~50 |
60~120 |
Hook conveyor,m/min |
0.35~3.0 |
0.35~3.0 |
0.35~3.0 |
Single hood loac,kg |
200 |
300 |
400 |
Hook space, mm |
600~800 |
600~800 |
600~1000 |
Blast capacity,kg/min |
4¡Á200 |
4¡Á250 |
6¡Á250 |
Ventilation,m3/h |
8000 |
10500 |
14500 |
Processable part, mm, max |
¦Õ700¡Á1200 |
¦Õ700¡Á1600 |
¦Õ850¡Á1900 |
Power,kw approx. |
73 |
83 |
132 |
|
Mono rail stepper shot blast machines |
Model |
RHB483 |
RHB485 |
RHB4810 |
Processable part,mm, max |
¦Õ900¡Á1600 |
¦Õ900¡Á1600 |
¦Õ1300¡Á1900 |
Blast wheel kg/min |
2¡Á250 |
4¡Á250 |
6¡Á250 |
Production efficiency, hook/h |
20 |
30~40 |
40-60 |
Hook conveyor,m/min |
3~8 |
3~8 |
3~8 |
Hook space, mm |
600~1000 |
600~1000 |
700~1400 |
Ventilation, m3/h |
5000 |
10500 |
14500 |
Power,kw |
53 |
83 |
115 |
|
Mono rail continuous shot blast machines |
| Model |
RHB583 |
RHB585 |
RHB5810 |
Processable part,mm, max |
¦Õ800¡Á1600 |
¦Õ800¡Á1900 |
¦Õ1200¡Á2200 |
Blast wheel kg/min |
4¡Á250 |
6¡Á250 |
6¡Á330 |
Production efficiency, hook/h |
40 |
40 |
60 |
Hook conveyor,m/min |
0.8~3.0 |
0.8~3.0 |
0.8~3.0 |
Hook space, mm |
600~9000 |
500~1000 |
500~1300 |
Ventilation, m3/h |
10500 |
14500 |
18000 |
Power,kw |
84 |
73 |
188 |
|
|
|
Straight rail or Y rail shot blast machines |
Model |
RHSB376 |
RHSB378B |
RHSB378C |
RHSB378E |
Processable parts,mm, max |
¦Õ600¡Á
1100 |
¦Õ800¡Á
1500 |
¦Õ900¡Á
1500 |
¦Õ900¡Á
1500 |
Hanger load capacity, kg |
600 |
1000 |
1000 |
1000 |
Blast wheel, kg/min |
2¡Á120 |
2¡Á180 |
2¡Á250 |
2¡Á250 |
Ventilationm3/h |
5000 |
7200 |
8300 |
8300 |
Power, kw |
19 |
28 |
37.4 |
39.65 |
|
Model |
RHSB3710 |
RHSB3720 |
RHSB3730 |
RHSB3750 |
Processable parts,mm |
¦Õ1200¡Á
1800 |
¦Õ1400¡Á
2200 |
¦Õ1600¡Á
2300 |
¦Õ1800¡Á
2500 |
Hanger load capacity, kg |
1000 |
2000 |
3000 |
5000 |
Blast wheel, kg/min |
2¡Á250 |
3¡Á250 |
3¡Á250 |
4¡Á250 |
Ventilationm3/h |
9000 |
15000 |
15000 |
18000 |
Power, kw |
39.65 |
61.27 |
64.4 |
78.4 |
|
 |
|
|
