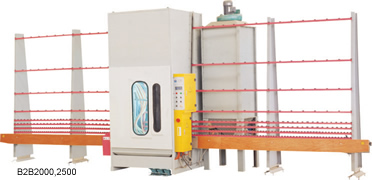

Automatic Blast Machines for glass sheet

Automatic sand blasting machines are specailly designed for processing glass sheet rang from 400mm -2500 wide, 5-20mm thick.

It mainly consists of:
blasting cabinet;
belt conveyor for moving glass sheet npassing through blasting room;
belt driving system to moving the blasting guns up/down;
PLC control system;
three automatic blasting guns for automatic operation;
one manual blasting gun for manual blasting testing;
dust collector; etc
Model
B2B-1500
B2B-2000
B2B-2500
Capacity
10-15 m2/h
10-15 m2/h
12-15 m2/h
Processable Glass sheet, max
1500 (H) x 3000mm
2000(H) x 3000mm
2500 (H) x 3000mm
Processable Glass sheet, min
400mm x 400mm
400mm x 400mm
400mm x 400mm
Processable Glass sheet thickness
5-20mm
5-20mm
5-20mm
Automatic blast gun
3 pcs
3 pcs
3 pcs
Manual blast gun
1 pc
1 pc
1 pc
Exhauster
2.5Kw
2.5Kw
2.5Kw
Total power
3.5Kw.
3.5Kw.
3.5Kw.
Air source
0.6~0.8MPa, 5 m3 /min
0.6~0.8MPa, 5 m3 /min
0.6~0.8MPa, 5 m3 /min
Dry filter dust collector
16 cotton filter tubes
16cotton filter tubes
16 cotton filter tubes
Overviwe dimension
4800mm x 1500mm x 2780mm
7400mm x 1500mm x 2780mm
7400mm x 1500mm x 3300mm
Main cabinet
2000mm x 1200mm x 900mm
2500mm x 1200mm x 900mm
3000mm x 1200mm x 900mm.
Dust colletor
2000mm x 800mm x 800mm.
2000mm x 800mm x 800mm.
2000mm x 800mm x 800mm.
Weight
950kg
1000kg
1100kg
Manual Blast Machines for glass sheet
Manual Sand blasting machines B2B-3000M and B2B-3000S are specailly designed for manually processing glass sheet rang from 400mm -1250 wide, 5-20mm thick. It consists of blasting cabinet, dust collector, conveyors, and one manual blasting gun.

B2B-3000S has powered conveyor for easy move glass sheet passing through blasting area.

B2B-3000M and B2B3000S can be also used for processing porcelain tile, stone slab, plastic sheet for surface engraving.
Model
B2B-3000M
 manual glass sandblasting machine
Overviwe dimension
3200x1000x2600mm
Processable Glass sheet, max
2000mmx2000mm
processable Glass sheet thickness
4-12mm
Manual blasting gun
1pc
Dry filter duct collector
8 cotton filter tubes
Exhauster
1.0kw
Total power
1.3kw
Weight
500kg
Air source
0.6~0.8MPa,
1.25 m3/min
B2B-3000S manual sand blast machine for glass sheet
Model
B2B-3000S
Overviwe Dimension
5500x1000x2600mm
Processable Glass sheet, max
3000mmx2500mm
Processable Glass sheet thickness
4-12mm
Manual blasting gun
1pc
Dry filter dust collector
8 cotton filter tubes
Dust collector power
1.0kw
Total power
2.0kw
Weight
600kg
Air source
0.6~0.8MPa,
1.25 m3/min
