Preservation Lines

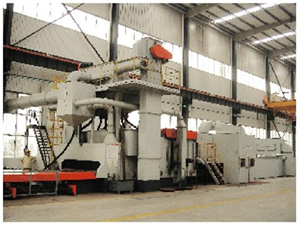

Preservation line is mainly insist of roller conveyor system, pre-heat room, shot blasting machine, automatic painting system, drying room, dust-removal system, paint mist filtration system and electronic control system, etc.

This system mainly used for processing steel sheet, L section steel, , U section steel, and H section steel.


Model SP2000 SP2500 SP3000 SP3500 SP4000 SP4500
Steel Sheet Width, max 2000mm 2500mm 3000mm 3500mm 4000mm 4500mm
Thickness 3¡«60mm 3¡«60mm 3¡«60mm 3¡«60mm 3¡«100mm 3¡«100mm
L,U,H steel Ssection, max 1600¡Á400mm 2200¡Á400mm 2400¡Á500mm 2800¡Á500mm
Section, min 60¡Á80mm 60¡Á80mm 60¡Á80mm 60¡Á80mm
Length 3¡«12m 3¡«12m 3¡«12m 3¡«12m 3¡«12m 3¡«12m
Load capacity, max 1200  kg/m 1200  kg/m 2000  kg/m 2000  kg/m 3000  kg/m 3000  kg/m
Conveyor speed 1-5 m/min 1-5 m/min 1-5 m/min 1-5 m/min 1-5 m/min 1-5 m/min
Power (electrical heating), approx ¡Ý390KW ¡Ý420KW ¡Ý460KW ¡Ý500KW
